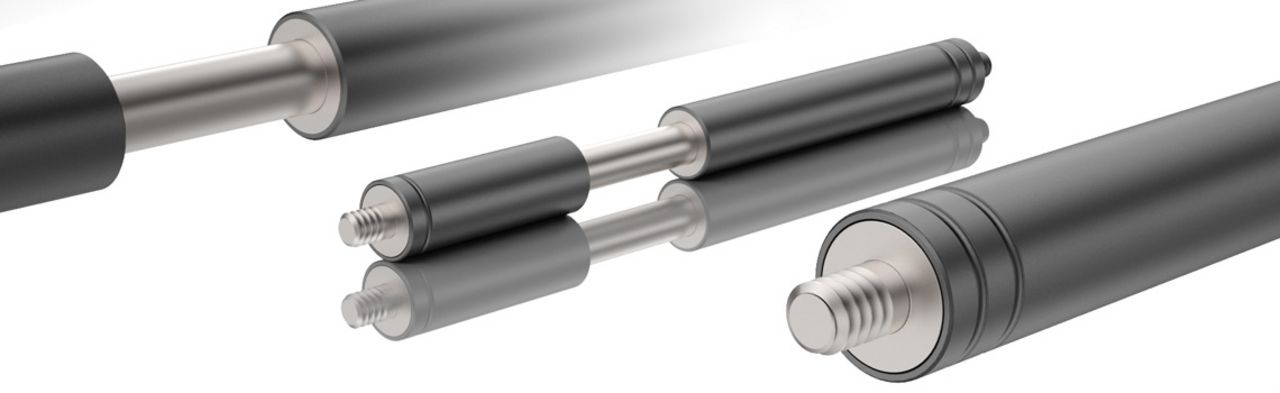

Double lift springs

Bauckhage has special double lift springs in its range for heavy flaps with a large opening angle, which are characterised by a low initial force and a high final force. These springs have two pressure tubes that can be filled differently and are therefore able to cover two force ranges.



Benefits

  • Two force ranges
  • For heavy flaps with a large opening angle
  • Customised design

The functionality of double lift springs

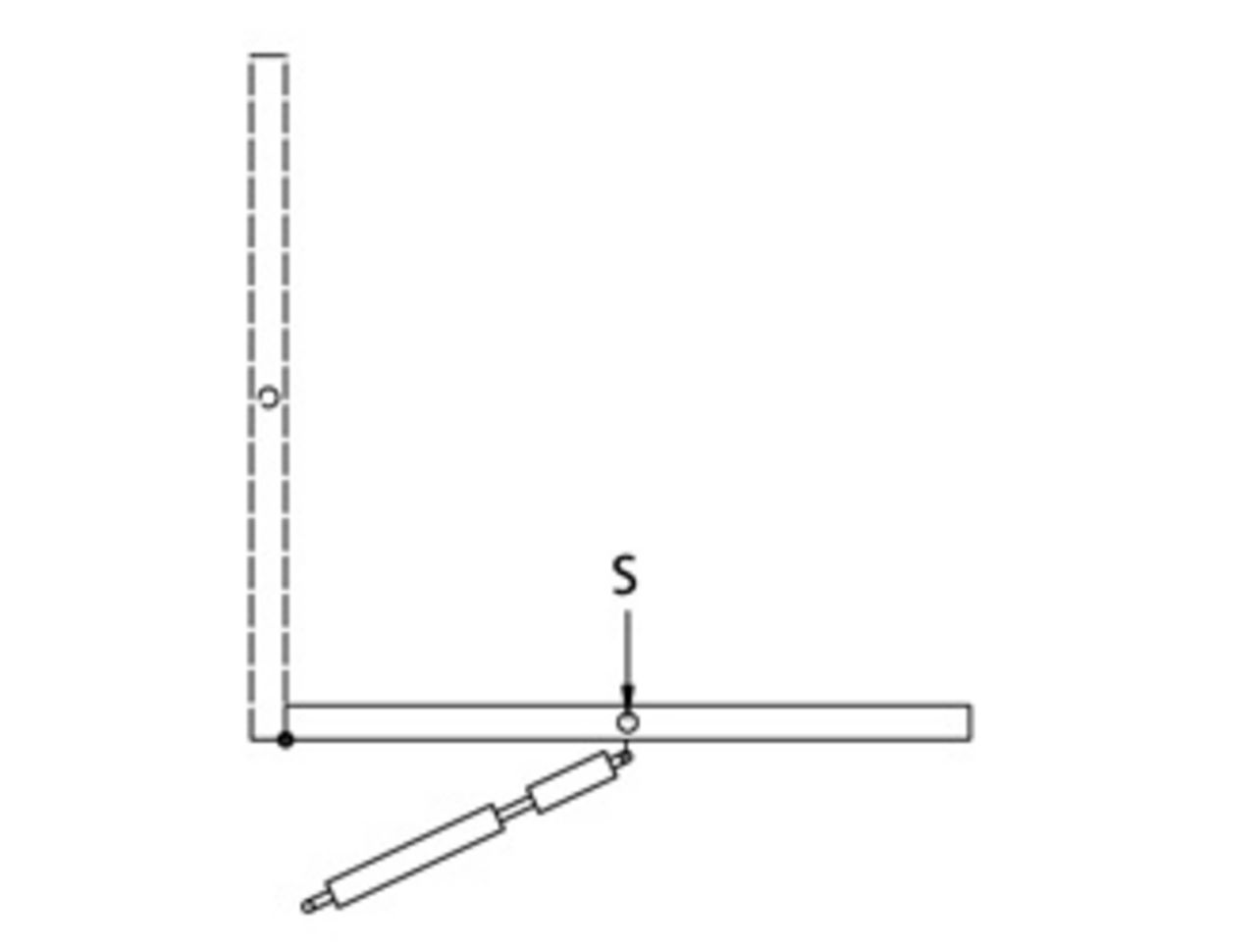

In this position, the centre of gravity S is furthest away from the pivot point. The highest force is required to open the flap. Both strokes are retracted. Opening is performed by the cylinder with the higher force.

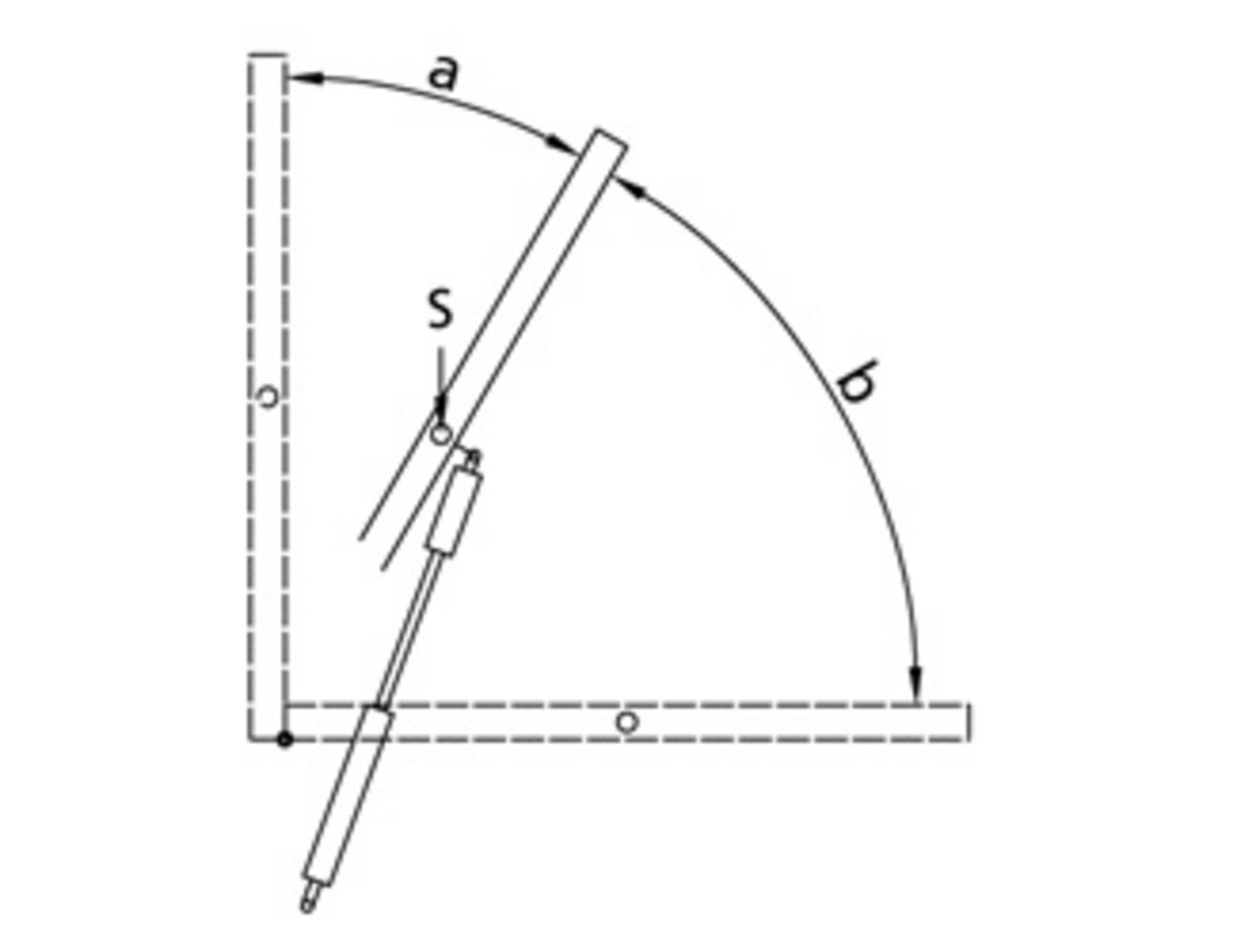

In this position, the centre of gravity S moves closer to the pivot point. Less spring force is required. Stroke 1 is extended in this position. The spring section 2 with the lower force now becomes effective.

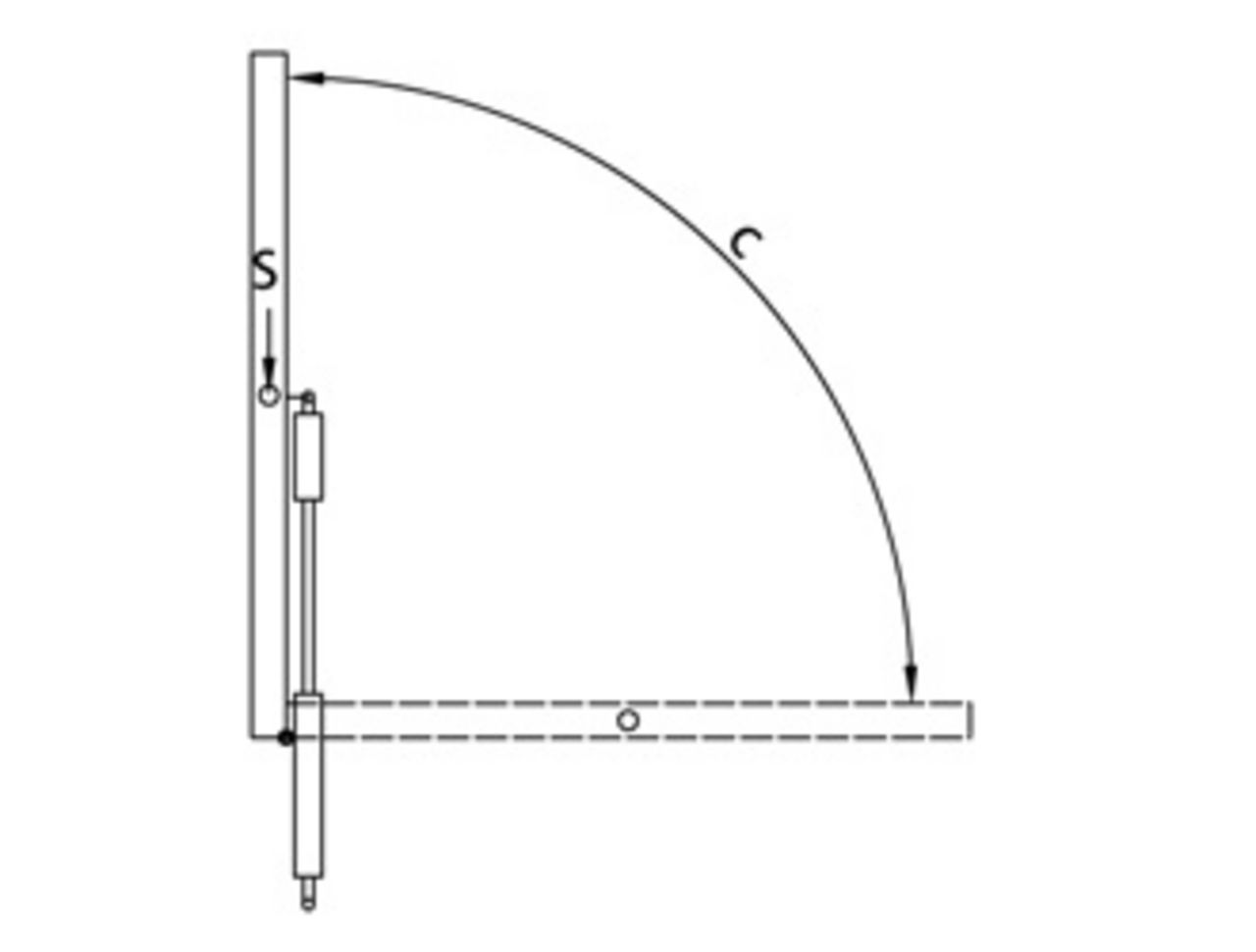

In dieser Position liegt der Schwerpunkt S nahe oder direkt im Drehpunkt. Es wird eine geringe Federkraft benötigt.
Beide Hübe sind voll ausgefahren.



The specific properties and parameters of a double lift spring, such as the spring constant and maximum load, can vary depending on the application and requirements. It is important to select the correct size and specification of the double lift spring according to the requirements of the system to ensure optimum performance and function.



Bauckhage has special double lift springs in its range for heavy flaps with a large opening angle, which are characterised by a low initial force and a high final force. Bauckhage double lift springs are available in steel, V2A and V4A.

Double lift springs are specially designed for our customers' applications!

Contact us, we will be happy to advise you!

The force ranges are precisely harmonised and adapted to the required kinematics.

You are welcome to fill in our enquiry form with the values you require and send it to us without obligation.
We will get back to you as soon as possible.
